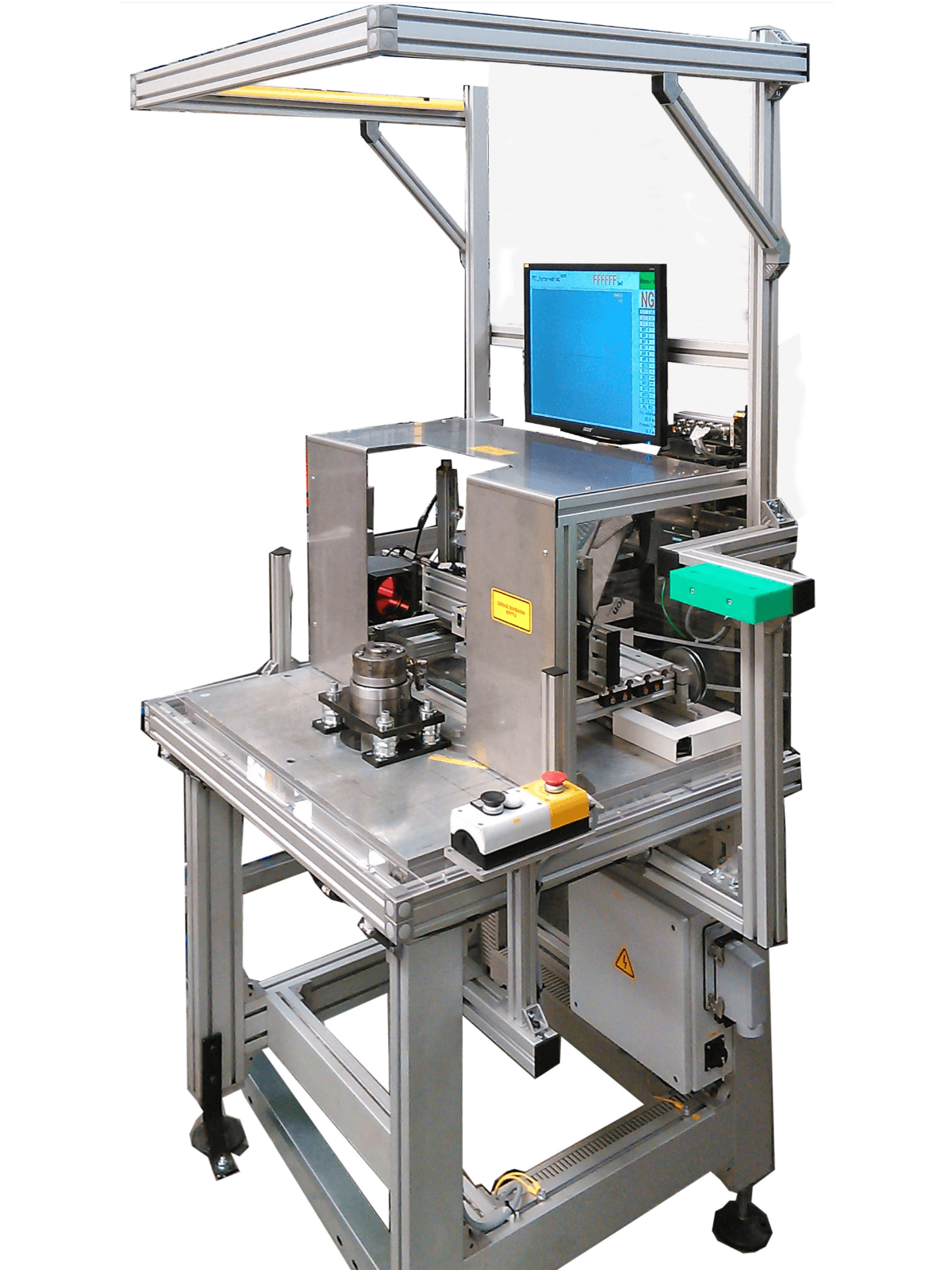

The runout check device is designed to control the the runout of rotating parts by an optical 2D micrometer while the part is rotating.
The device also includes dimensional inspection using precise touch sensors.
The device is integrated into the assembly line and operates in fully automatic mode.
The software contains a database application in which the parameters of the settings for each type are stored and all scan results are recorded.
Real part (left) and scanned profile using a 2D optical micrometer (right).
The runout check is performed by evaluating the deviations in both the vertical and horizontal directions from the required shape during the part rotation by the whole revolution.
